WIDE / plugin 03
stereo width that holds up in mono.
allpass decorrelation across 40 ERB-warped bands, with per-band correlation feedback that keeps every frequency mono-safe. expand without phase collapse. no Haas tricks.
50 papers. 5 knobs. $29.
in motion
watch WIDE work.
WIDE v1.3.3 with frequency-dependent spectrum smoothing, peak hold ghost line, and transient flash overlay. April 7 visual identity refresh still in place: editable EQ values, improved inline controls.
listen
hear the difference.
click play. each demo plays the original, then auto-switches to WIDE halfway through. click either box to toggle manually.
🎧 for best results, listen on headphones or studio monitors.

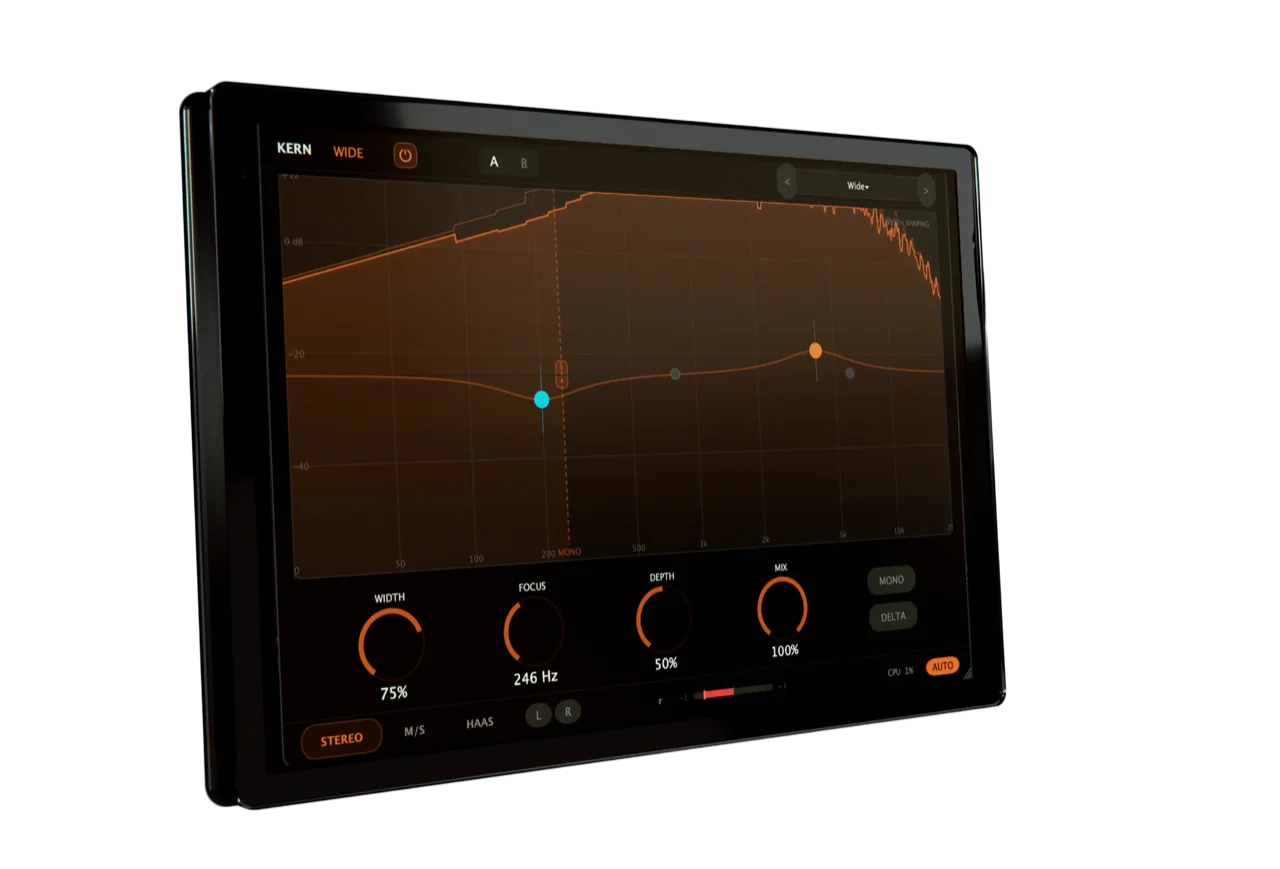

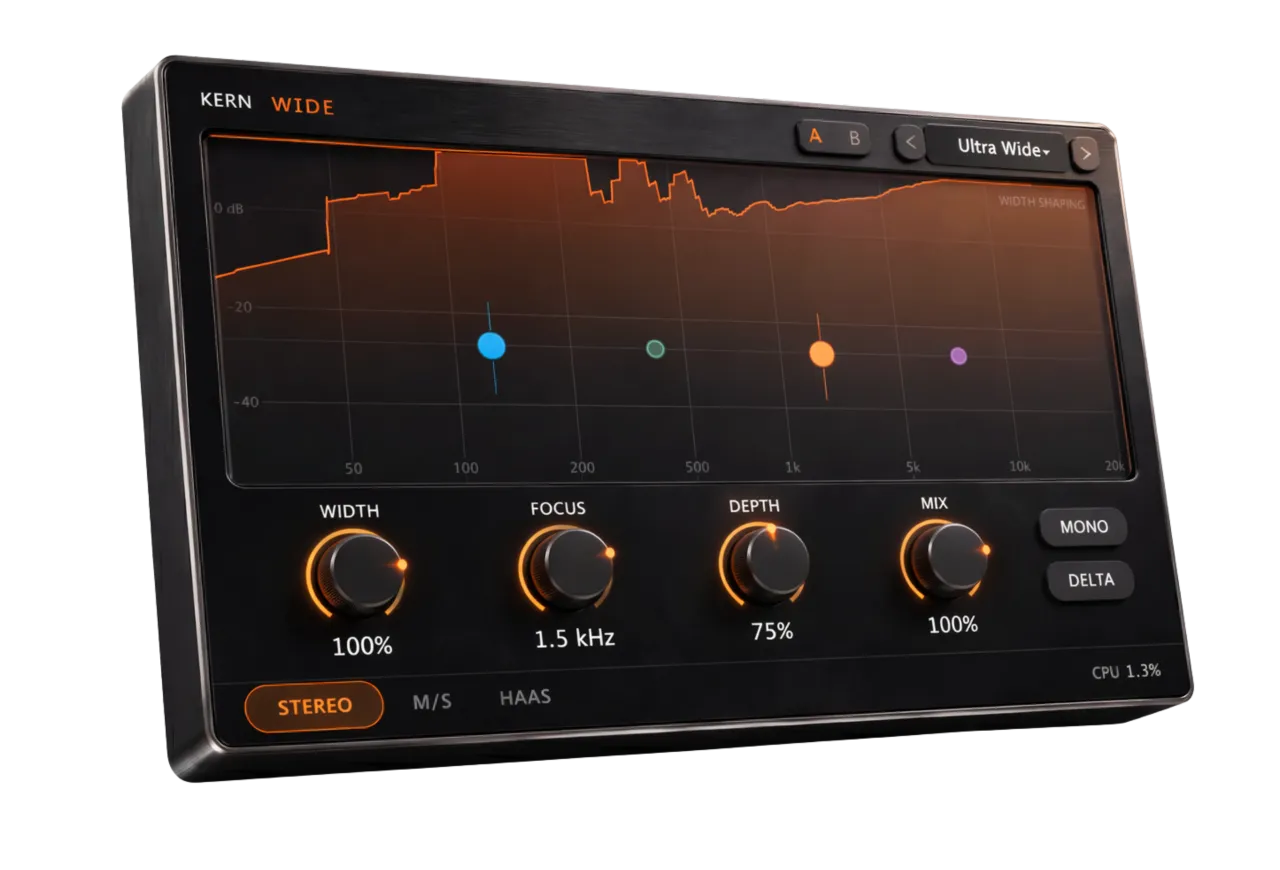

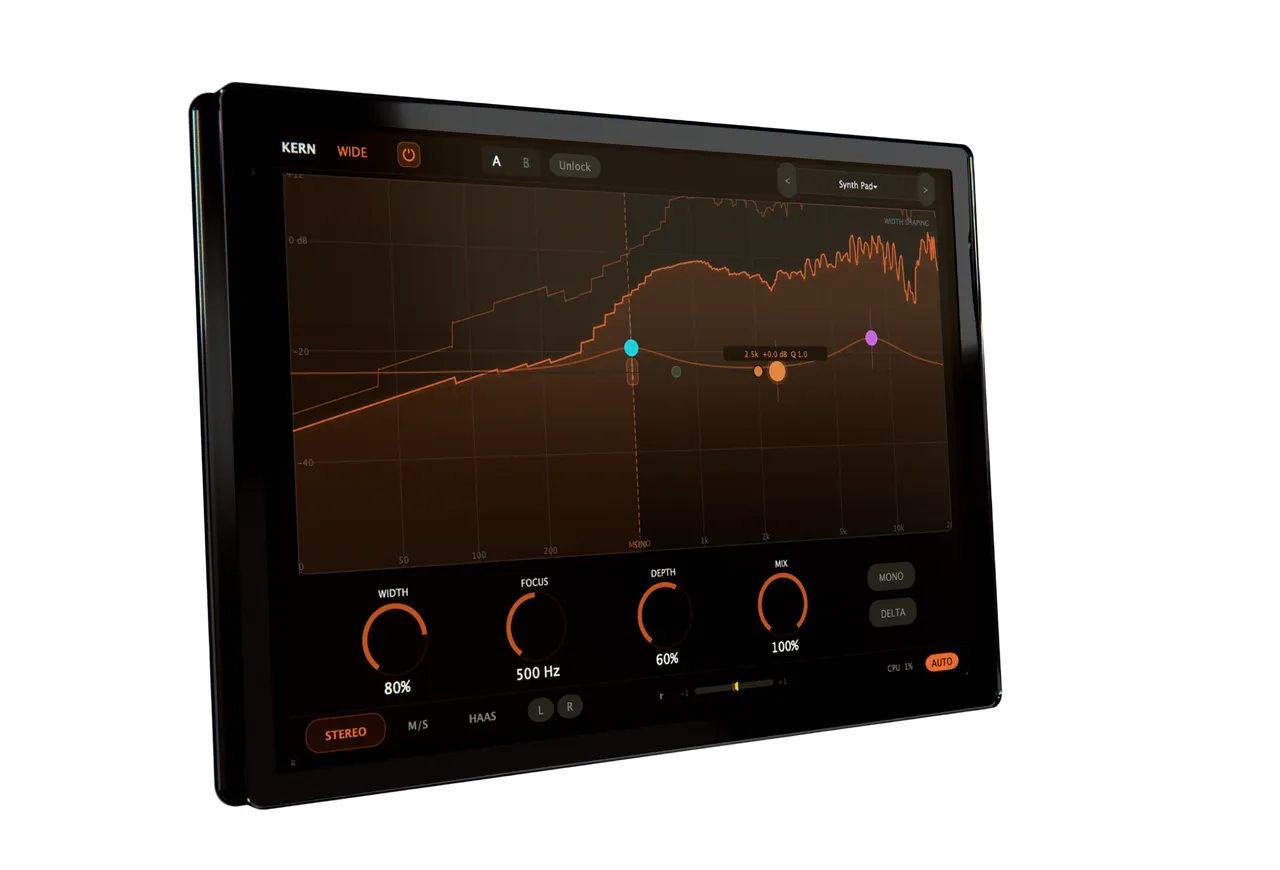

explore the interface
see what you're hearing.

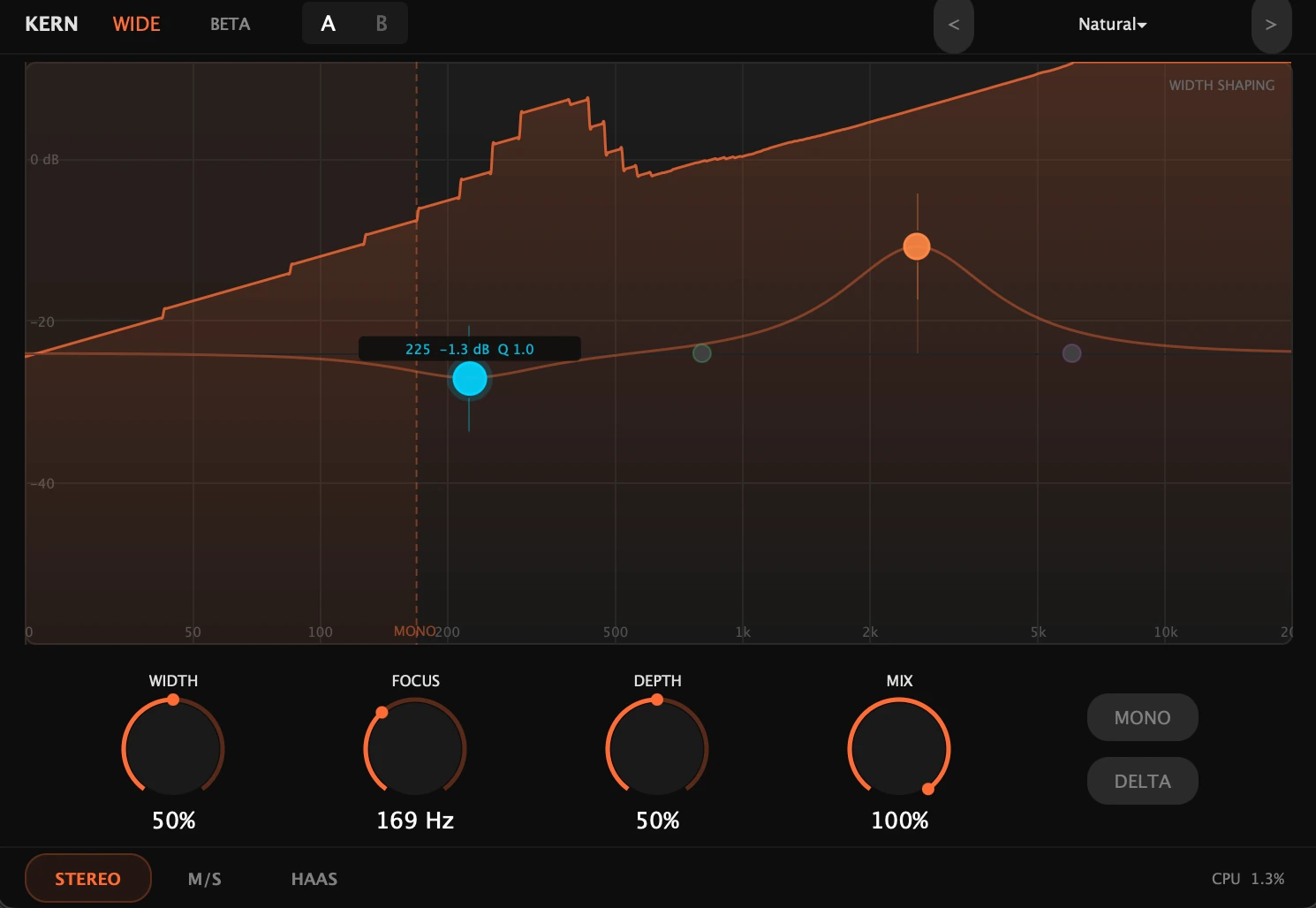

WIDE in Stereo mode shaping a guitar loop. the width curve shows where the stereo field opens up, with mono protection below the FOCUS crossover.
hover the numbered dots to explore the interface
features
what makes WIDE different.
01 / psychoacoustic width curve
width follows human perception of stereo across frequency. most expansion where your ears are most sensitive. based on perceptual research.
02 / three stereo modes
STEREO for natural width. M/S for mid-side balance. HAAS for delay-based widening. each mode uses different psychoacoustic strategies.
03 / mono-compatible by design
per-band correlation feedback keeps every frequency safe for mono. the MONO button lets you check instantly. no phase cancellation surprises.
04 / frequency-focused expansion
the FOCUS knob targets width to a specific frequency range. expand just the highs, just the mids, or the full spectrum.
under the hood
the signal path.
input conditioning
M/S encoding separates mid and side channels. the signal is prepared for independent stereo processing.
ERB spectral analysis
40 perceptually-spaced bands analyze the frequency content. each band gets independent width control shaped by the psychoacoustic width curve.
allpass cascade
40 biquad allpass filters with ERB-warped golden-ratio spacing create frequency-dependent phase shifts. this is the core decorrelation engine.
correlation constraint
per-band ICC feedback keeps every frequency mono-safe. no phase cancellation, no collapsing stereo field.
auto-compensation
loudness-matched output so the wider signal never sounds louder than the original. you hear the width, not the volume.
specifications
the numbers.
system requirements
learn the science
understand what WIDE is doing.
free guides built from the same research behind the plugin. no paywalls, no courses to sell.
what is stereo width
how your brain constructs a stereo image from two speakers.
04Haas and allpass decorrelation
the two main approaches to widening. how WIDE combines them.
05stereo without phase issues
mono compatibility by design. why correlation monitoring matters.
go deeper
full documentation.
controls, stereo modes, how the allpass cascade works, preset guide, quick start recipes, and technical specs.
read the docs
